Product Details

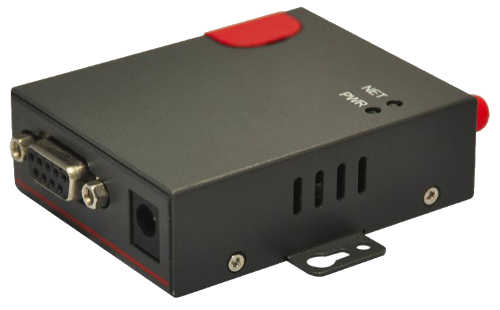

FWT-WLINK-D803

Industrial 3G RS232/485/TTL Serial Modem


The WLINK WL-D803 is a 3G Modem series designed to emulate serial connections for RS232 devices, and can be used with a variety of existing serial devices to turn them into M2M/IoT solutions. This typically includes things like water flow monitoring/control, meter reading, traffic monitoring/control, digital sign control, etc.

The unit converts RS232 data signals into IP packets for point-to-point communications with an endpoint. The endpoint can be an Ethernet enabled device, or a device behind another WLINK unit.

We also have a TTL or RS485 supporting version of this hardware on request.

This unit is designed for use on the Spark UMTS network.

Features

Industrial Casing

Protective aluminium casing for extra durability and industrial installations.

RS232/485 Packet Assembler/Disassembler

The unit turns an RS232 or RS485 data stream into TCP/UDP packets for IP communication with an Ethernet-enabled device or another emulated RS232/485 device.

LED Status Indicators

Easily see the state of your device via the built in LED indicators.

Specifications

Hardware

  • Dimensions: 70.5x55.5x22mm (excludes antenna)
  • Weight: 150g
  • Interface;
    • 1x DB9 RS232/RS485/TTL Serial (depending on hardware version)
    • 1x SMA-K antenna interface

Connectivity

  • Mobile Standards
    • UMTS Dual Band (850/2100 MHz)
  • Connection Type
    • Packet Switched Data
    • RS232 300-115200bps

Networking

  • Standards
    • RS232 Serial
  • Administration Services
    • Configured via Custom Software over RS232

Power

  • Operating Voltage: DC 5V ~ 26V
  • Consumption: 70mA/12V (Load, Average), 17mA/12V (Idle)

Environment

  • Operating Temperature: -30°C ~ 70°C
  • Operating Humidity: Upto 95%

Identification

  • APT Order Code: FWT-WLINK-D803-2 (for RS232 or TTL on request)
  • APT Order Code: FWT-WLINK-D803-4 (for RS485)
