Product Details

FWT-HON-H8951

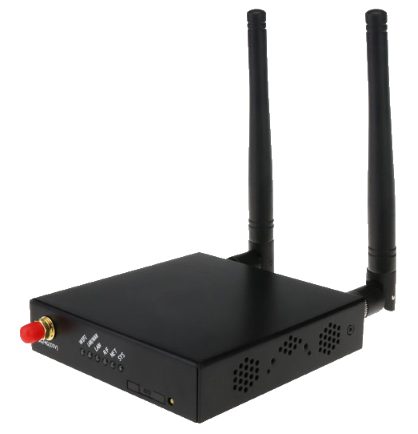

LTE Mobile Router


The H8951 from Hongdian™ is a 4G/LTE modem and router with full New Zealand cellular support.

With a large featureset and good performance, the H8951 provides an affordable solution to allow one or more ethernet devices cellular internet or Private APN access.

This device supports all active cellular networks and radio bands in NZ.

Features

Web Based Administration

Configure your hardware to your needs via the built-in web-based administration menu.

Wide IP Feature Set

The H8951 supports a wide variety of protocols and features out of the box such as DDNS, NTP, GRE/IPSEC, and gives the user more control over the router NAT, Masquerading, Static Routing, and more.

LED Status Indicators

Easily see the state of your device via the built in LED indicators.

Links

Specifications

Hardware

  • Dimensions: 100x98x23mm
  • Weight: 300g
  • Interface
    • 2x 10/100 Ethernet Ports
    • 2x SMA (Antenna Type)

Connectivity

  • Mobile Standards
    • LTE FDD (B1/B2/B3/B4/B5/B7/B8/B28)
    • LTE TDD (B40)
    • 3G WCDMA (B1/B2/B5/B8)
    • GSM/EDGE (B2/B3/B5/B8)
  • Administration Services
    • Dial On Demand
    • Always On
    • Dial on SMS
    • Schedule-based Dialing (requires NTP configuration first)
  • Connection Type
    • Packet Switched Data

Networking

  • Standards
    • 10/100Mbit Ethernet
    • PPTP/L2TP VPN Support
    • GRE/IPSEC Tunnel Support
  • Administration Services
    • Web Configuration Interface
    • IP-Based Port Forwarding (DNAT) and Firewall
    • DHCP Server
    • Dynamic DNS
    • Custom Static Routing
    • NTP Calibration
    • SNMP
  • Security
    • DMZ Support
    • IPsec
    • IP Firewall

Power

  • Operating Voltage: DC 5-36V
  • Current Consumption: 100mA@12V (Idle), Up to 270mA@12V (Traffic)

Environment

  • Operating Temperature: 55°C
  • Operating Humidity: Upto 95%

Identification

  • APT Order Code: FWT-HON-H8951
