Product Details

FWT-WL-R100

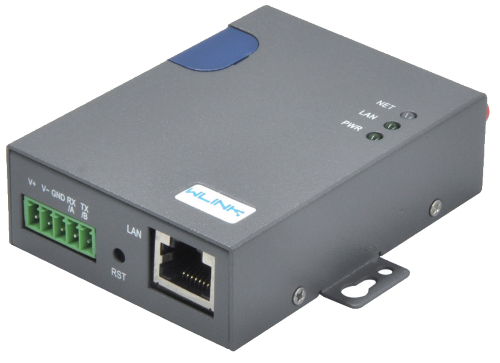

Industrial LTE/4G IoT Mobile Router


The WLINK WL-R100 is an LTE/4G Mobile Router that supports all New Zealand bands with full 3G backward compatibility. The unit has a feature-set geared toward IoT solutions, and is housed in an industrial aluminium case. It comes equipped with 1 Ethernet LAN port.

The unit can be configured to monitor the radio connection state, or data usability through an ICMP/ping check to ensure that the connection is always online.

Features

Industrial Casing

Protective aluminium casing for extra durability and industrial installations.

Connection Monitoring

Unit can be configured to restart radio and/or reboot when detecting an issue with radio state or data flow.

VPN Support

Includes VPN/Tunnel support for PPTP, L2TP, GRE and IPsec.

Web Based Administration

Configure your hardware to your needs via the built-in web-based administration menu.

LED Status Indicators

Easily see the state of your device via the built in LED indicators.

Specifications

Hardware

  • Dimensions: 78.5x59x23.5mm (excludes antenna)
  • Weight: 150g
  • Interface;
    • 1x RJ45 (For Ethernet Devices)
    • 1x RS232 console port
    • 2x SMA-K antenna interface (requires two antennas for 4G MIMO support)

Connectivity

  • Mobile Standards
    • LTE Tri Band (700/1800/2600 MHz)
    • UMTS Quad Band (850/900/1900/2100 MHz)
  • Connection Type
    • Packet Switched Data
    • PPTP/L2TP/GRE/IPIP/IPsec VPN Capability

Networking

  • Standards
    • 10/100Mbit Ethernet
    • RS232 Serial, Full Flow Control
    • GRE/IPSEC Tunnel Support
    • Serial to TCP PAD with Modem Emulation
  • Administration Services
    • Web Configuration Interface
    • IP Port Forwarding
    • DHCP Server
    • Dynamic DNS
    • SNMP support
    • NTP support

Power

  • Operating Voltage: DC 7.5V ~ 32V

Environment

  • Operating Temperature: -30°C ~ 70°C
  • Operating Humidity: Upto 95%

Identification

  • APT Order Code: FWT-WL-R100
