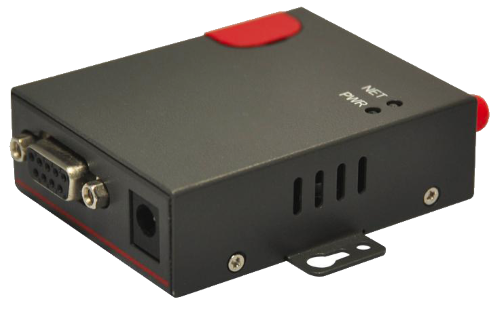

FWT-WLINK-D805

Industrial LTE/4G RS232/485/TTL Serial Modem

The WLINK WL-D805 is a LTE (4G) Modem series designed to emulate serial connections for RS232 devices, and can be used with a variety of existing serial devices to turn them into M2M/IoT solutions. This typically includes things like water flow monitoring/control, meter reading, traffic monitoring/control, digital sign control, etc.

The unit converts RS232 data signals into IP packets for point-to-point communications with an endpoint. The endpoint can be an Ethernet enabled device or a device behind another WLINK unit.

We also have a TTL or RS485 supporting version of this hardware on request.

This unit can be used on all NZ cellular networks.

Features

Industrial Casing

Protective aluminium casing for extra durability and industrial installations.

RS232/485 Packet Assembler/Disassembler

The unit turns an RS232 or RS485 data stream into TCP/UDP packets for IP communication with an Ethernet-enabled device or another emulated RS232/485 device.

LED Status Indicators

Easily see the state of your device via the built in LED indicators.

Specifications

Hardware

Dimensions: 70.5x55.5x22mm (excludes antenna)
Weight: 150g
Interface;
- 1x DB9 RS232/RS485/TTL Serial (depending on hardware version)
- 1x SMA-K antenna interface

Connectivity

Mobile Standards
- FDD LTE 700/850/900/1700/1800/1900/2100/2600MHz (B1,2,3,4,5,7,8,28)
- TDD LTE 2300MHz (B40)
Connection Type
- Packet Switched Data
- RS232/RS485/TTL depending on model 300-115200bps

Networking

Standards
- RS232 Serial
Administration Services
- Configured locally via custom software over RS232 on Windows

Power

Operating Voltage: DC 5V ~ 26V
Consumption: 70mA/12V (Load, Average), 17mA/12V (Idle)

Environment

Operating Temperature: -30°C ~ 75°C
Operating Humidity: Up to 95%

Identification

APT Order Code: FWT-WLINK-D805-2 (for RS232)
APT Order Code: FWT-WLINK-D805-4 (for RS485)
APT Order Code: FWT-WLINK-D805-T (for TTL)
